ATV Bridges

Name: ATV Bridges
Brand: ME Bridge Solutions
Price: 15375.0 USD
Availability: InStock

From $15,375.00

Length 20 foot 30 foot 40 foot 50 foot 60 foot

$15,375.00

Shipping calculated at checkout.

Price is approximate and will vary based on specs and delivery.

Once you submit your order, we will contact you to coordinate payment, delivery, and installation.

Want to talk to a person? Call our salesperson Atlee at 434-404-1694 if you have any question or want more information.

Bridge Specifications

Standard Lengths	10', 20', 30', 40', 50’, 60’
Panel Width	4-foot wide modular panels
Construction	Solid steel I-beams, reinforced with C-channel sides
Load Capacity	Engineer-certified to handle heavy equipment
Panel Weights	30-foot panels: 4,500 lbs each 40-foot panels: 6,700 lbs each 50-foot panels: 8,500 lbs each 60-foot panels: 11,000 lbs each

ATV and side-by-side traffic is hard on wet crossings. Ruts deepen, banks cave in, and streams carry away soil every time wheels drop into the same low spot. Our ATV bridges give you a simple, sturdy way to cross water, ditches, and soft ground so trails stay usable and the land holds up season after season.

ME Bridge Solutions builds compact steel bridges sized for ATVs, UTVs, and small tractors. Sections are moved with common equipment, set on basic abutments or cribbing, and pinned together on site. You get a solid crossing that feels permanent but can be relocated as trails change or property use evolves.

Built for ATVs, UTVs, and Light Equipment

These bridges are designed around the weight and wheelbase of modern off-road vehicles. Steel beams and decking are engineered for side-by-sides, four-wheelers, small compact tractors, and utility carts. Widths are chosen to give riders a comfortable margin on each side while still fitting within narrow trail corridors and wooded approaches.

We help you match span length to your creek or drainage width so vehicles roll on and off smoothly. Guard rails or curbs can be incorporated where you want a more defined track, especially on group or public trails.

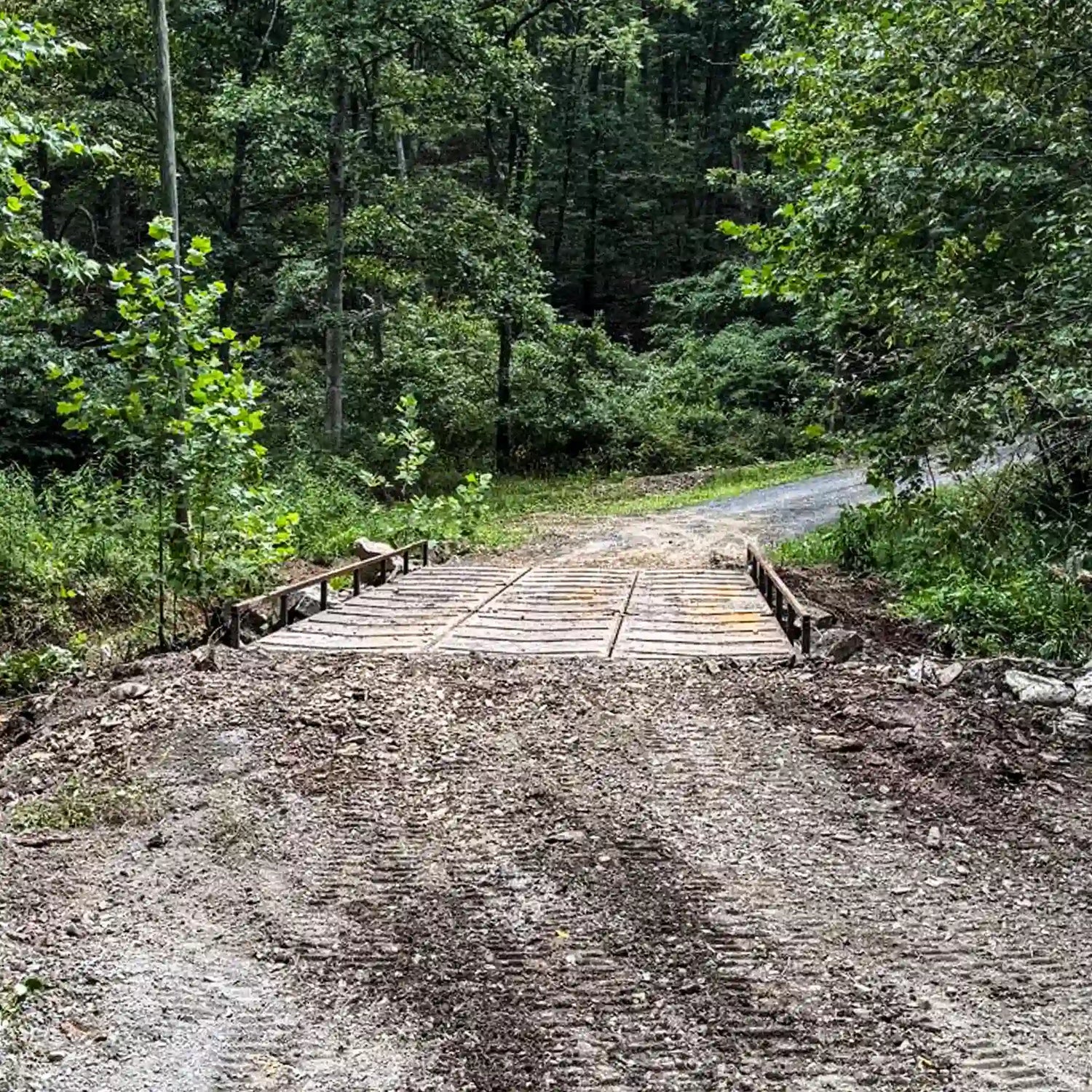

Front approach view of a residential steel bridge installed on a gravel driveway in a wooded setting.

A good ATV bridge should make the ride better while taking stress off the land. Our systems help you:

Keep machines out of streams and mud holes that never dry out
Protect banks and approaches from washouts and deep ruts
Maintain access to hunting spots, food plots, and back fields in wet seasons
Improve safety on blind crossings and steeper approaches
Reposition or reuse the bridge if trail routes change

We offer purchase and used bridge options, along with guidance on siting, bearing surfaces, and basic installation so your crew can place the structure with the tools and equipment you already own.

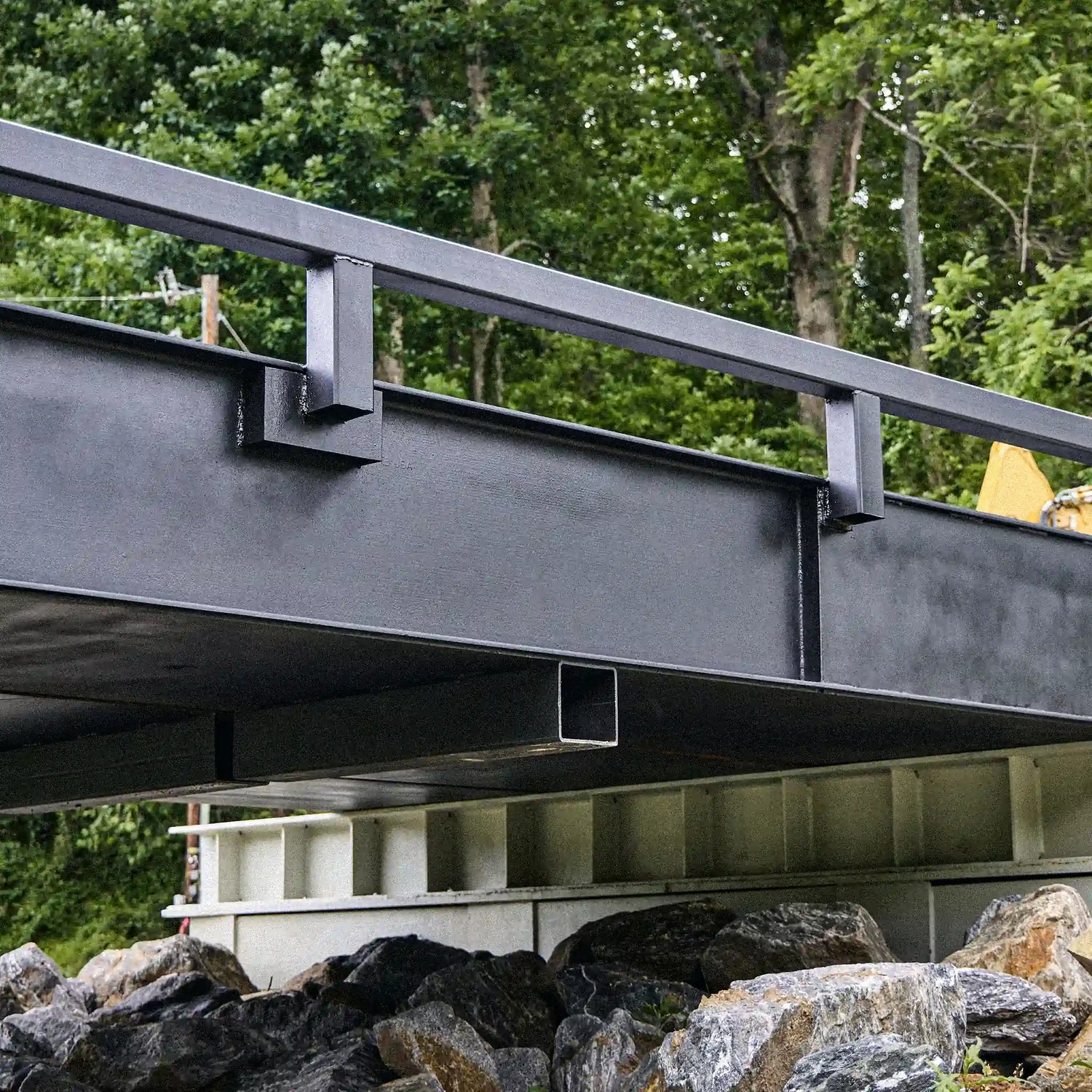

Side detail of a modular steel bridge girder and guardrail system

Built Strong. Set Fast. Trail-Ready.

Our ATV Bridges provide a simple, sturdy way to keep ATVs and side-by-sides out of mud holes and streambeds. Modular steel sections pin together on site, set on basic abutments or cribbing with common equipment, and deliver a stable crossing that can stay put long-term or be relocated as trails change.

See it in Action

Our modular bridge system goes from delivery to operational in one to two days. Designed for rapid deployment, durability, and versatility, our bridges are the ideal solution for both temporary access and permanent installations.

Heavy-duty steel I-beam construction

Standard bridge lengths from 10-60 feet

Four-foot-wide modular panels

Custom lengths, widths, and dimensions

Optional side, safety, and pedestrian railings

Four chain points on each panel for loading, staging, placement, or deployment

Relocatable for use across multiple job sites

Suitable for trucks, tractors, heavy equipment, pedestrians, and more

Custom-engineered options

Fast delivery and installation with on-site support

Connection Kits

Heavy-duty and standard Connection Kits are critical for maintaining bridge strength and stability. Kits come standard on all 80-ton and DOT-rated bridges, and are recommended for Logging operations.

Map of the United States with red lines indicating routes or paths.

Delivery & Installation

We provide convenient and reasonably-priced delivery directly to your job site. Our team offers full installation services or assistance with offloading and placement to ensure your bridge is operational quickly and efficiently.

View Our Process
