Utility Bridges

Name: Utility Bridges
Brand: ME Bridge Solutions
Price: 15375.0 USD
Availability: InStock

From $15,375.00

Length 20 foot 30 foot 40 foot 50 foot 60 foot

$15,375.00

Shipping calculated at checkout.

Price is approximate and will vary based on specs and delivery.

Once you submit your order, we will contact you to coordinate payment, delivery, and installation.

Want to talk to a person? Call our salesperson Atlee at 434-404-1694 if you have any question or want more information.

Bridge Specifications

Standard Lengths	10', 20', 30', 40', 50’, 60’
Panel Width	4-foot wide modular panels
Construction	Solid steel I-beams, reinforced with C-channel sides
Load Capacity	Engineer-certified to handle heavy equipment
Panel Weights	30-foot panels: 4,500 lbs each 40-foot panels: 6,700 lbs each 50-foot panels: 8,500 lbs each 60-foot panels: 11,000 lbs each

Keeping power and critical utilities online often comes down to simple access. Washed-out approaches, soft ground, and drainage channels can turn a routine job into a major delay. Our steel utility bridges give you dependable crossings so crews can reach powerlines, pipelines, remote substations, and other hard-to-serve locations without waiting on perfect conditions.

ME Bridge Solutions supplies modular steel bridges built with utility work in mind. Sections are transported on standard trucks, pinned together on site, and set with common lifting equipment. They can be used for planned maintenance, storm response, or as air gaps where you need safe, defined separation under lines or over sensitive ground.

Built Around Utility Loads and Work Patterns

Utility companies and electric cooperatives rely on equipment that is heavy, tall, and often operating in tight corridors. Our bridges are engineered for bucket trucks, digger derricks, line trucks, small cranes, and support vehicles, as well as occasional public or farm traffic where crossings intersect local roads.

Steel beams and decking are sized for your expected loads and clear widths are chosen to match right-of-way constraints and typical approaches. Span lengths can be adjusted to cross creeks, culverts, wetlands, or existing utilities without compromising clearances or access.

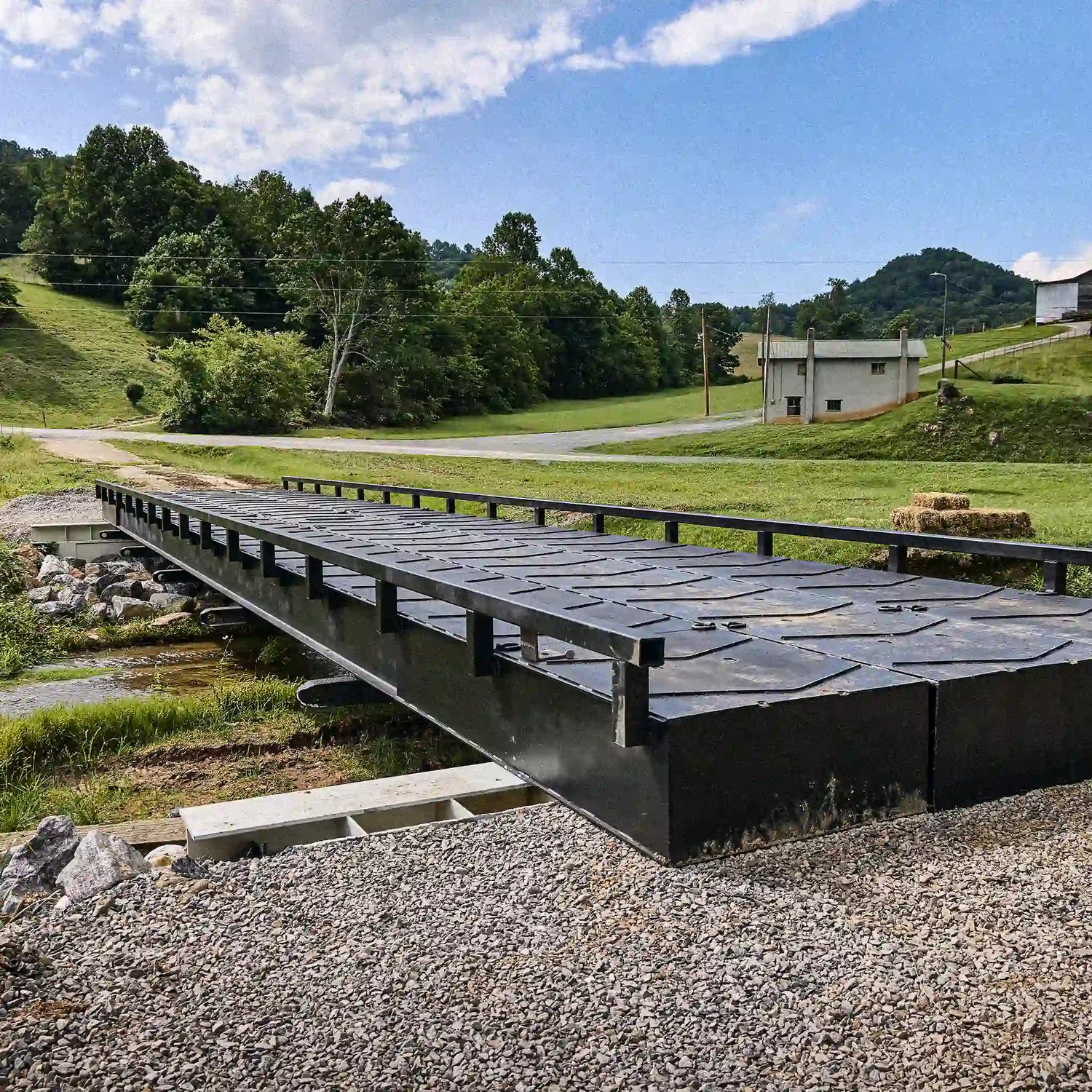

Modular steel bridge with guardrails installed over a rural stream

A good utility bridge should help you get in, fix the problem, and get out with minimal disruption. Our systems are designed to help you:

Reach powerlines, pipelines, and remote substations during both routine work and emergency repairs
Maintain reliable access through floodplains, low spots, and soft approaches
Use bridges as air gaps to separate traffic from sensitive infrastructure or protected areas
Reuse the same bridge on multiple projects and storm events across your territory
Reduce damage to rights-of-way, drainage structures, and landowners’ property

We offer purchase and used bridge options, and we work directly with your engineering or operations team to plan spans, bearing surfaces, and installation methods that fit your existing tools and fleet.

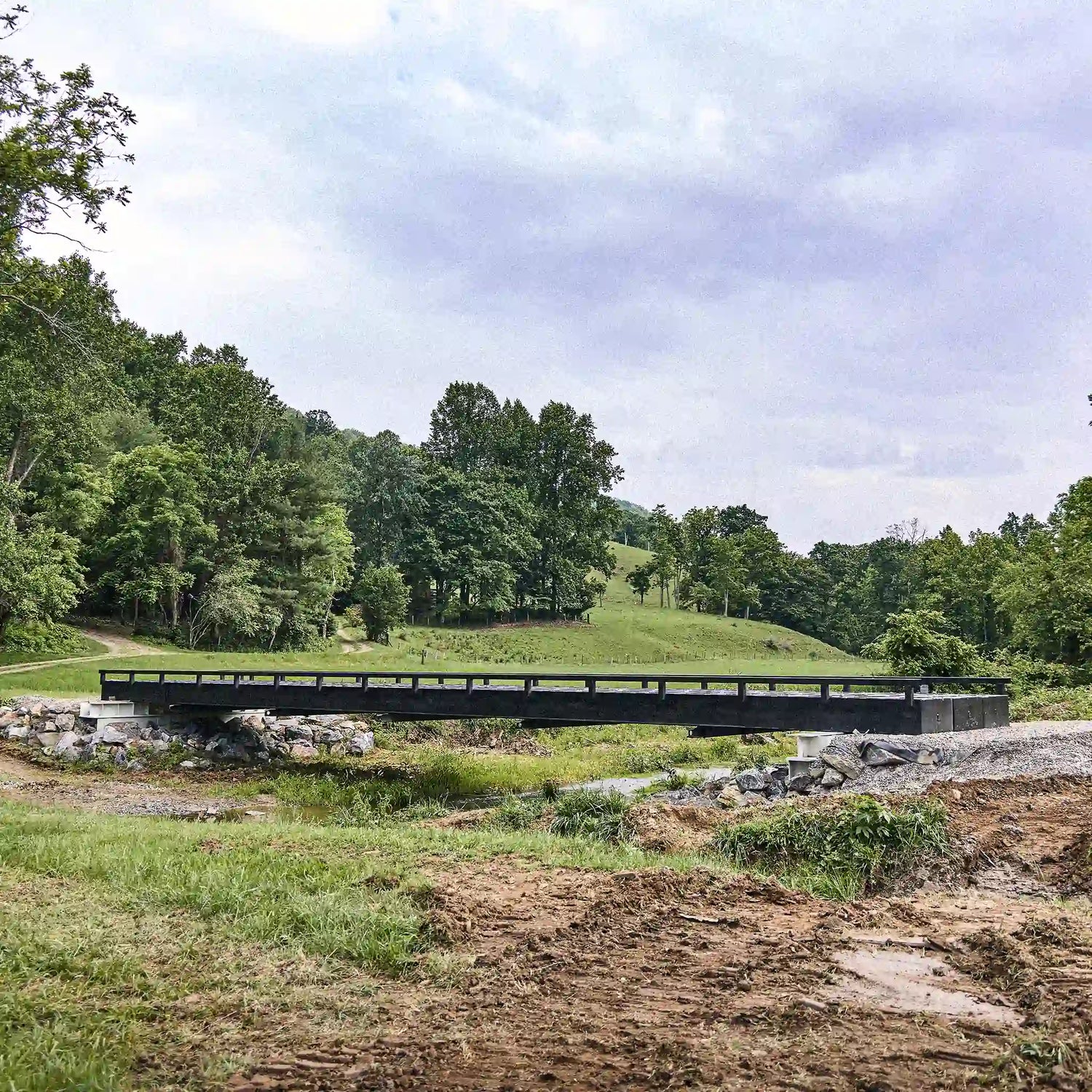

Modular steel bridge installed over a creek with gravel access and wooded hillside

Built Strong. Set Fast. Utility-Ready Access.

ME Bridge Solutions provides steel utility bridges designed to keep power and critical services accessible when approaches wash out, ground turns soft, or drainage crossings slow the job down. These modular spans deliver dependable crossings for routine maintenance, storm response, and hard-to-reach corridors—so crews can get in, complete the work, and get out without waiting on perfect conditions.

See it in Action

Our modular bridge system goes from delivery to operational in one to two days. Designed for rapid deployment, durability, and versatility, our bridges are the ideal solution for both temporary access and permanent installations.

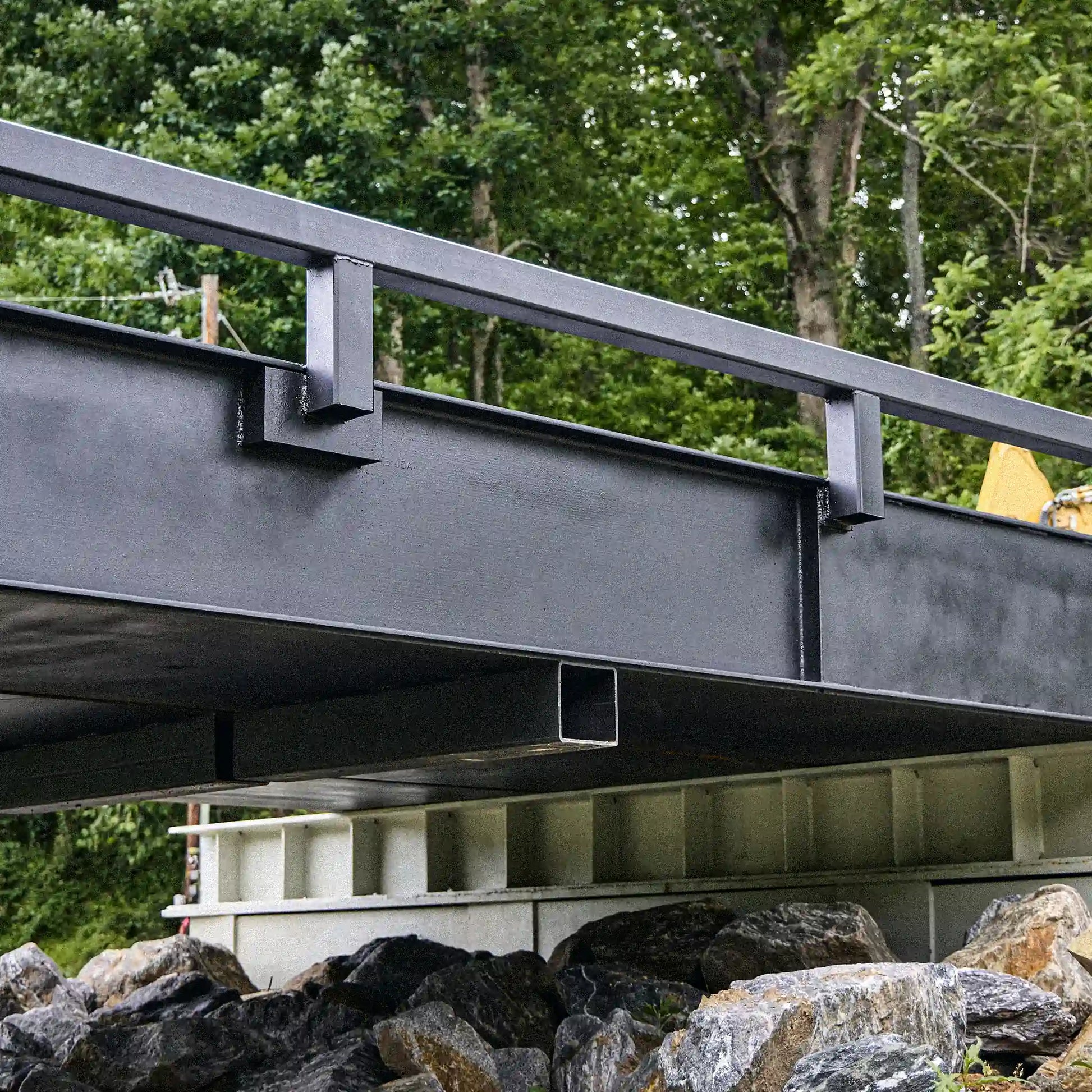

Heavy-duty steel I-beam construction

Standard bridge lengths from 10-60 feet

Four-foot-wide modular panels

Custom lengths, widths, and dimensions

Optional side, safety, and pedestrian railings

Four chain points on each panel for loading, staging, placement, or deployment

Relocatable for use across multiple job sites

Suitable for trucks, tractors, heavy equipment, pedestrians, and more

Custom-engineered options

Fast delivery and installation with on-site support

Connection Kits

Heavy-duty and standard Connection Kits are critical for maintaining bridge strength and stability. Kits come standard on all 80-ton and DOT-rated bridges, and are recommended for Logging operations.

Map of the United States with red lines indicating routes or paths.

Delivery & Installation

We provide convenient and reasonably-priced delivery directly to your job site. Our team offers full installation services or assistance with offloading and placement to ensure your bridge is operational quickly and efficiently.

View Our Process
