40' Portable Bridge Rental

Name: 40' Portable Bridge Rental
Brand: ME Bridge Solutions
Price: 4000.00 USD
Availability: InStock

$4,000.00

Shipping calculated at checkout.

Price is approximate and will vary based on specs and delivery.

Once you submit your order, we will contact you to coordinate payment, delivery, and installation.

Want to talk to a person? Call our salesperson Atlee at 434-404-1694 if you have any question or want more information.

Bridge Specifications

Standard Lengths	10', 20', 30', 40', 50’, 60’
Panel Width	4-foot wide modular panels
Construction	Solid steel I-beams, reinforced with C-channel sides
Load Capacity	Engineer-certified to handle heavy equipment
Panel Weights	30-foot panels: 4,500 lbs each 40-foot panels: 6,700 lbs each 50-foot panels: 8,500 lbs each 60-foot panels: 11,000 lbs each

Some crossings are big enough that shorter spans simply are not practical; that's when a 40' portable bridge comes in. A wide creek, a deep drainage way, or a flood channel that moves serious water needs a single, confident span. Our 40 foot prefab bridges are built for these larger gaps, giving you one clear crossing that protects approaches, supports heavy loads, and holds up in demanding conditions.

ME Bridge Solutions fabricates 40 foot bridges with structural steel beams and steel decking sized for substantial equipment and frequent traffic. Each unit is engineered for known loads, transported on standard trucks, and set with common lifting equipment. The result is a straightforward, durable crossing that feels permanent without the complexity of a full highway project.

Common Uses For a 40’ Portable Bridge

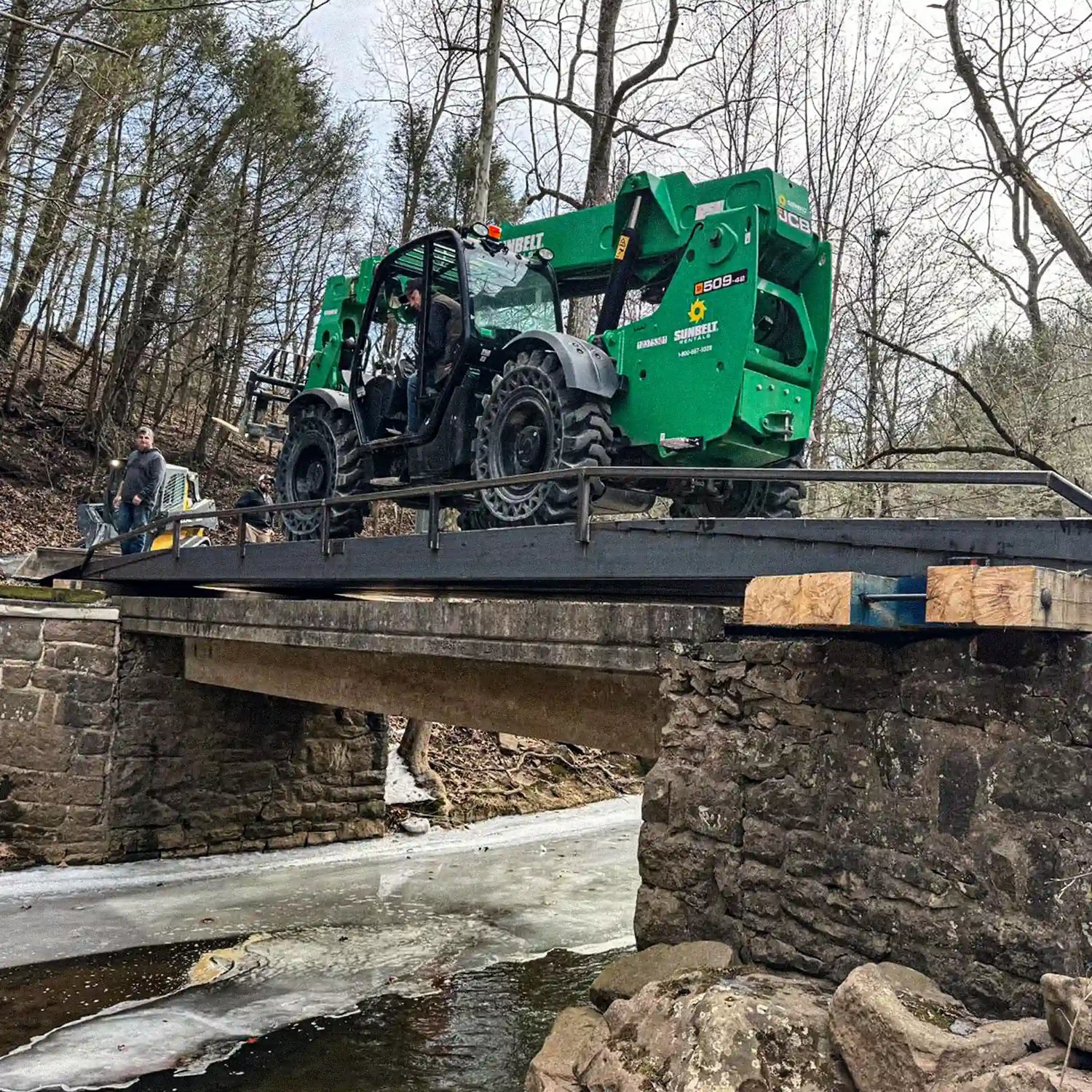

Green telehandler driving across a steel logging bridge over a creek, demonstrating heavy equipment load capacity.

Primary access for logging and construction

On timber tracts, 40 foot prefab bridges can serve as the main crossing over a central creek or ravine. It gives skidders, forwarders, and loaded log trucks a stable route that stays usable through wet seasons and protects banks from constant traffic. On infrastructure or sitework projects, a 40 foot Construction Bridge can span large ditches, storm channels, or stream corridors on primary haul roads so excavators, articulated trucks, and concrete mixers move without risky approaches or temporary fills that wash out.

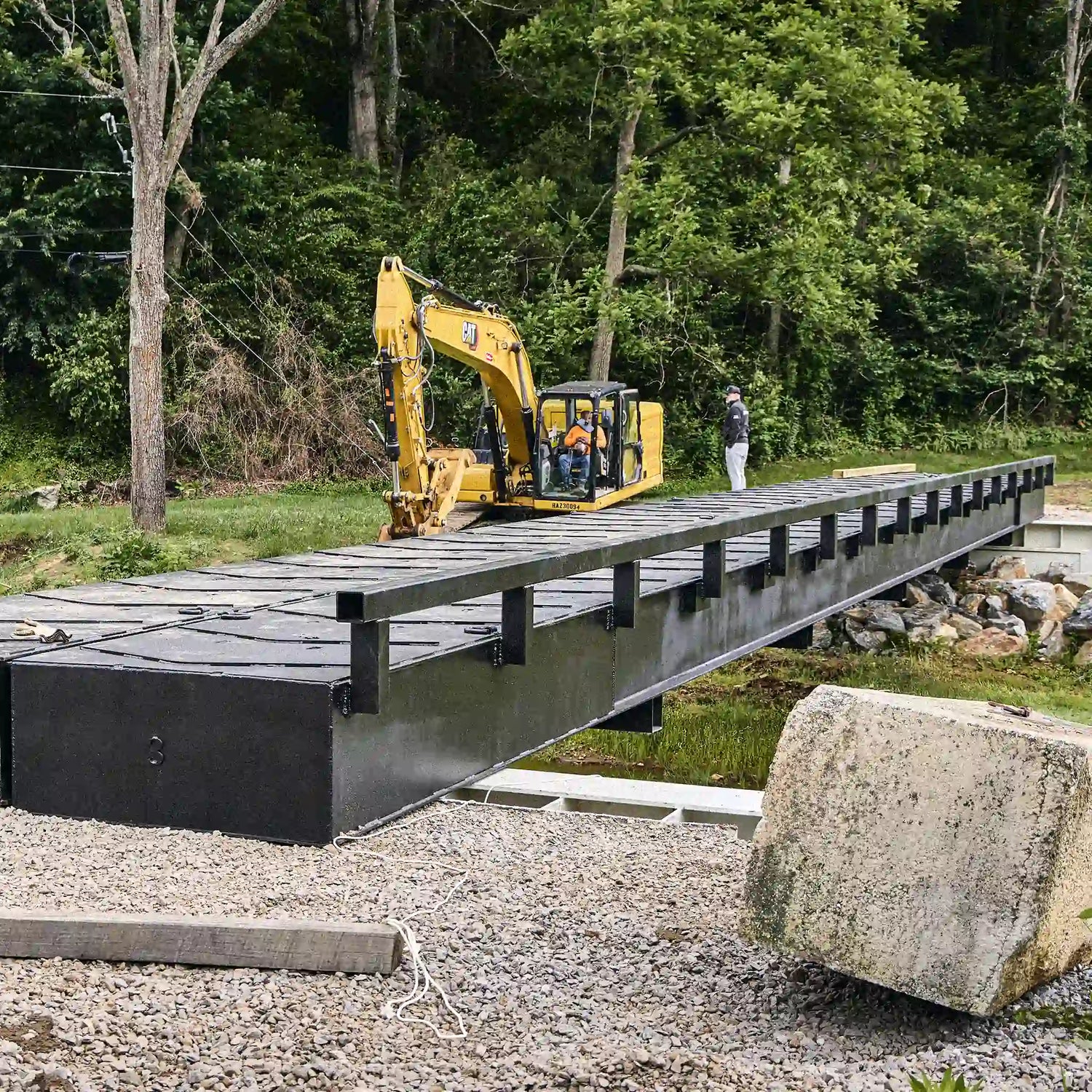

Black modular steel bridge installed across a rural creek crossing

Utilities, emergency access, and solar corridors

For utility work, a 40 foot Utility Bridge for rent can carry bucket trucks, digger derricks, and line trucks over wide channels along powerlines or pipelines where right-of-way and clearances leave little room for earthwork. In storm events or failure situations, a 40 foot Emergency Relief Bridge can reconnect rural roads, farm lanes, or access routes that have lost a major culvert or small structure. On renewable projects, a 40 foot Solar Farm Bridge can span larger stormwater features and drainage corridors between arrays or between the array field and substation, keeping both construction and long-term O&M traffic on reliable routes.

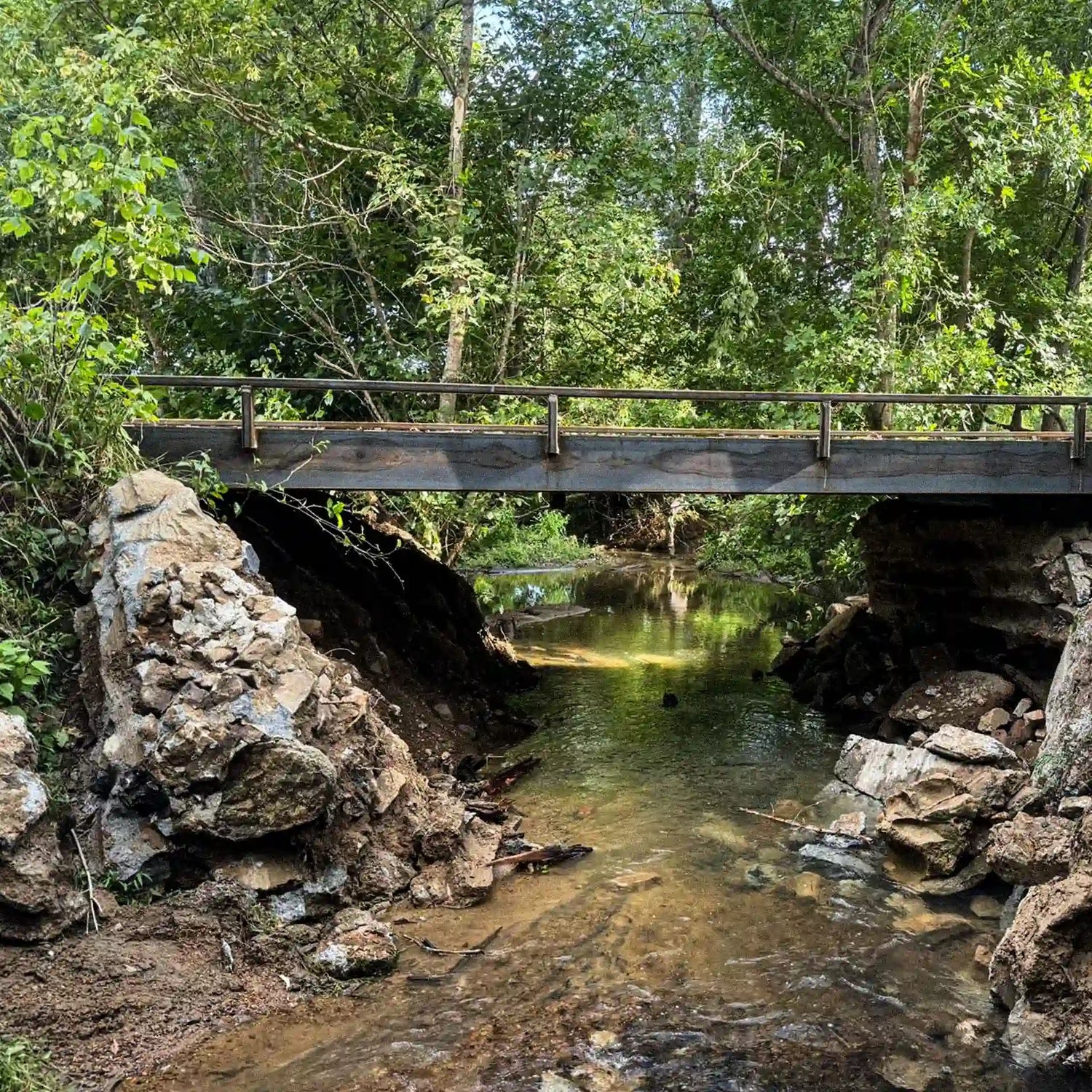

Steel logging bridge installed over a shallow creek with stone abutments and side railings in a wooded area.

Large residential, farm, and shared-use properties

Some private properties and shared drives need more than a small crossing. A 40 foot Residential Bridge for rent can form a primary driveway or private lane over a significant creek or ravine on an estate, farm, or rural subdivision. The same span can serve mixed use where a Pedestrian Bridge and light vehicle access share one crossing into back acreage, common areas, or trailheads. On larger recreational or hunting properties, it can also function as a robust access point that supports lighter ATV Bridge traffic along with pickups and small tractors.

See it in Action

Our modular bridge system goes from delivery to operational in one to two days. Designed for rapid deployment, durability, and versatility, our bridges are the ideal solution for both temporary access and permanent installations.

Plan a Bridge Around Your Biggest Crossing

Choosing a 40' portable bridge for rent is about matching span to your most challenging crossing so it works safely and consistently over time.

Looking at a major gap that needs a single, substantial span? Talk with ME Bridge Solutions about our 40 foot prefab bridges and how they can support Logging, Construction, Utility, Emergency Relief, Solar Farm, Residential, ATV, and Pedestrian access on your land or project.

Built Strong. Installed Fast. Ready to Work.

A 40' Portable Bridge for rent from ME Bridge Solutions will deliver durable, practical crossings for temporary, emergency, or permanent access. Built for heavy equipment and rugged terrain, these modular prefab bridges provide safe, reliable routes for construction sites, logging roads, farms, utility corridors, solar projects, and emergency response.

If this bridge is too much or too little for your needs, try our 50' Temporary Bridge Rental or ME Bridges' 30' Bridge Rental.

Heavy-duty steel I-beam construction

Standard bridge lengths from 10-60 feet

Four-foot-wide modular panels

Custom lengths, widths, and dimensions

Optional side, safety, and pedestrian railings

Four chain points on each panel for loading, staging, placement, or deployment

Relocatable for use across multiple job sites

Suitable for trucks, tractors, heavy equipment, pedestrians, and more

Custom-engineered options

Fast delivery and installation with on-site support

Connection Kits

Heavy-duty and standard Connection Kits are critical for maintaining bridge strength and stability. Kits come standard on all 80-ton and DOT-rated bridges, and are recommended for Logging operations.

Map of the United States with red lines indicating routes or paths.

Delivery & Installation

We provide convenient and reasonably-priced delivery directly to your job site. Our team offers full installation services or assistance with offloading and placement to ensure your bridge is operational quickly and efficiently.

View Our Process
