Construction Bridges

From $15,375.00

  • Yellow excavator crossing a modular steel construction bridge over a creek, showing the bridge carrying heavy equipment loads.
  • Front approach view of a modular steel construction bridge spanning a creek in winter, with workers standing at the far end.
  • Video of a 75 foot portable modular steel bridge install
  • Front approach view of a modular steel construction bridge spanning a creek in winter, with workers gathered at the far end.
  • Long steel construction bridge installed across a work zone, with gravel approaches and construction equipment in the background.

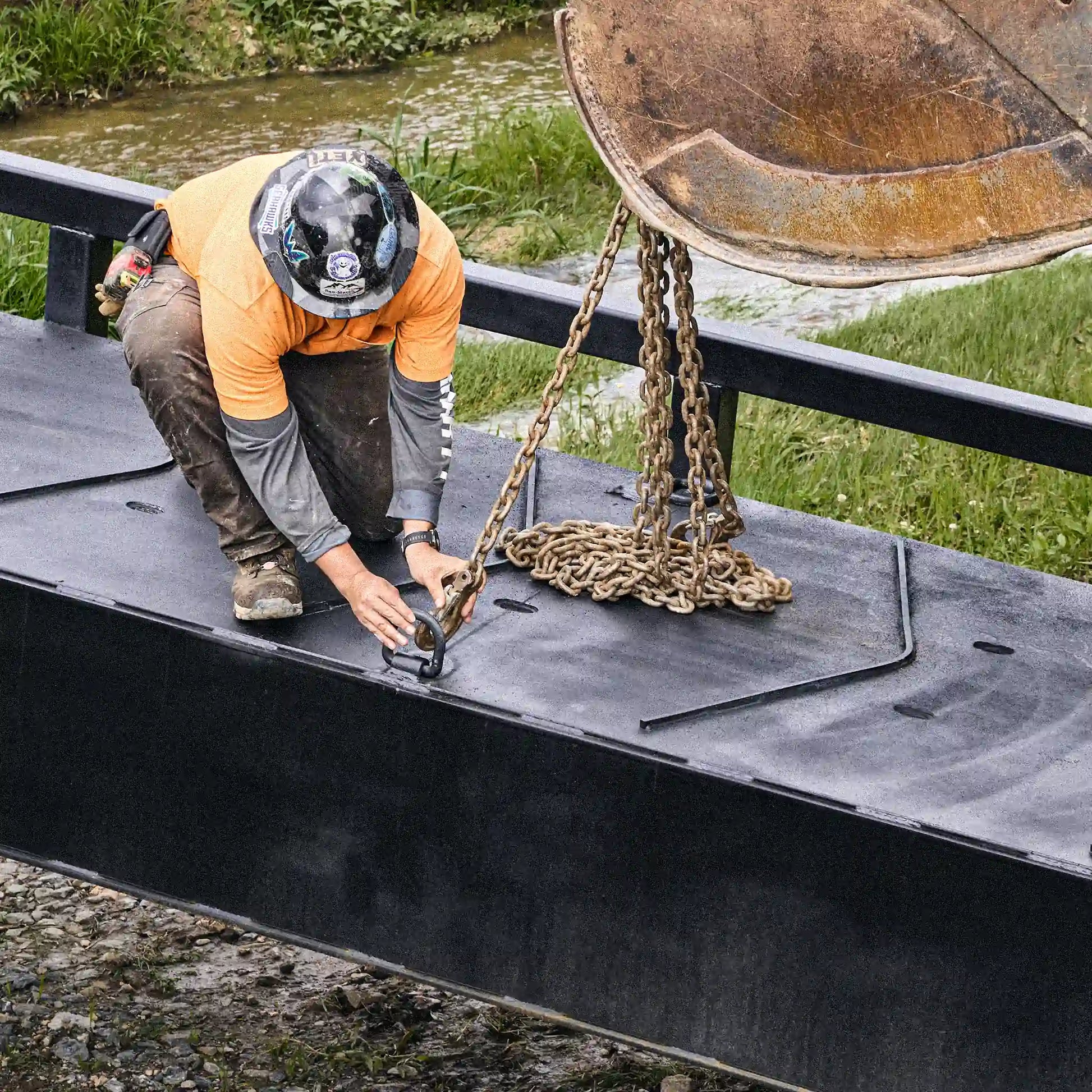

  • Worker connecting lift chains to a modular steel bridge deck
  • Front view of a modular steel construction bridge set into a dirt access road, with an excavator visible beyond the crossing.
  • Steel construction bridge installed over a rocky creek with an excavator and pickup trucks on the far approach in a wooded work area.
  • Compact excavator positioned on a steel construction bridge over a creek, demonstrating equipment access on a jobsite.
  • Isolated product image of a modular steel construction bridge with steel deck panels and low side railings on a plain background.
  • Front view of a modular steel bridge installed across a small creek, leading into an open field with dirt approaches.
  • Crew rigging a steel bridge section with an excavator during installation
Length
$15,375.00
$15,375.00
Shipping calculated at checkout.

Price is approximate and will vary based on specs and delivery.

Once you submit your order, we will contact you to coordinate payment, delivery, and installation.

Want to talk to a person? Call our salesperson Atlee at 434-404-1694 if you have any question or want more information.

Bridge Specifications

Standard Lengths

10', 20', 30', 40', 50’, 60’

Panel Width

4-foot wide modular panels

Construction

Solid steel I-beams, reinforced with C-channel sides

Load Capacity

Engineer-certified to handle heavy equipment

Panel Weights

30-foot panels: 4,500 lbs each
40-foot panels: 6,700 lbs each
50-foot panels: 8,500 lbs each
60-foot panels: 11,000 lbs each

On a construction site, access can make or break your timeline. Detours, culvert failures, and work around waterways can all slow crews, equipment, and local traffic. Our steel construction bridges give you a stable, code-conscious way to span those gaps so work continues while you protect the site and the people moving through it.

ME Bridge Solutions builds modular steel bridges sized for active construction, road work, and municipal projects. Each unit is engineered for real-world loads and approaches, installed with standard equipment, and removed or relocated when the job is done. You get a solid crossing that feels permanent during the project but moves with your schedule.

Built for Heavy Construction Loads

These construction bridges are designed with modern equipment and traffic in mind. Structural steel beams, steel decking, and engineered load ratings support excavators, haul trucks, concrete mixers, and staged materials, as well as vehicle and pedestrian detours where required.

Standard widths and spans cover common road and utility crossings, and our team helps you match the bridge to site geometry, traffic patterns, and permitting needs. Because the system is modular, you can configure length and width to fit each location instead of forcing a one-size-fits-all solution.

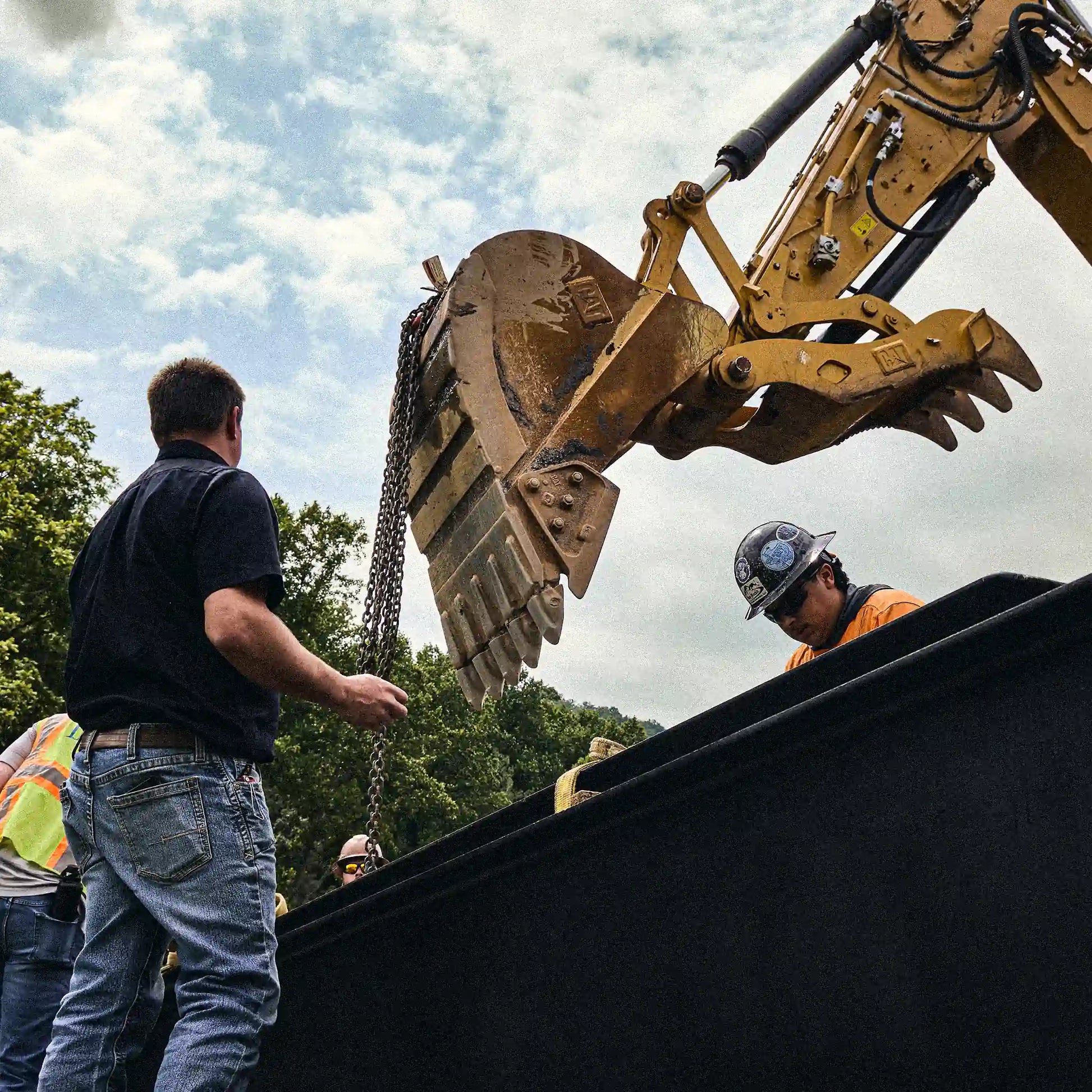

Crew rigging a steel bridge section with an excavator during installation

A temporary construction bridge should reduce risk, not add to your to-do list. Our bridges help you:

  • Maintain access for crews, emergency vehicles, and local traffic
  • Protect ditches, streams, and existing utilities from damage
  • Keep haul roads open through poor soil and wet seasons
  • Reuse the same bridge on future projects to lower long-term cost

We offer purchase, rental bridges, and used bridge options, along with delivery and basic install guidance within our service area.

Finished modular steel bridge with railings installed over a creek

Built Strong. Set Fast. Ready for the Jobsite.

Our Construction Bridges provide durable, code-conscious crossings that keep crews, equipment, and detour traffic moving when you’re working around ditches, streams, utilities, or failed culverts. Modular steel panels pin together on site, install with standard lifting equipment, and can be removed or relocated when the project wraps—so access stays reliable without locking you into a permanent structure.

See it in Action

Our modular bridge system goes from delivery to operational in one to two days. Designed for rapid deployment, durability, and versatility, our bridges are the ideal solution for both temporary access and permanent installations.

Load video:

Heavy-duty steel I-beam construction

Standard bridge lengths from 10-60 feet

Four-foot-wide modular panels

Custom lengths, widths, and dimensions

Optional side, safety, and pedestrian railings

Four chain points on each panel for loading, staging, placement, or deployment

Relocatable for use across multiple job sites

Suitable for trucks, tractors, heavy equipment, pedestrians, and more

Custom-engineered options

Fast delivery and installation with on-site support

Connection Kits

Heavy-duty and standard Connection Kits are critical for maintaining bridge strength and stability. Kits come standard on all 80-ton and DOT-rated bridges, and are recommended for Logging operations.

Map of the United States with red lines indicating routes or paths.

Delivery & Installation

We provide convenient and reasonably-priced delivery directly to your job site. Our team offers full installation services or assistance with offloading and placement to ensure your bridge is operational quickly and efficiently.

View Our Process
logging equipment on a portable steel bridge in a wooded area

Applications

Our portable steel bridges are widely used across various industries, including:

  • portable steel bridge in a wooded area
  • Excavators positioning a modular steel bridge section over a creek crossing
  • portable steel bridge over a stream in a wooded area
  • Worker measuring a steel bridge beam during modular bridge installation
