Logging Bridges

From $15,375.00

Skip to product information
1 of 8
Length

Regular price $15,375.00
Sale price $15,375.00 Regular price
Shipping calculated at checkout.

Price is approximate and will vary based on specs and delivery.

Once you submit your order, we will contact you to coordinate payment, delivery, and installation.


Want to talk to a person? Call our salesperson Atlee at 434-404-1694 if you have any question or want more information.

When you are running a logging crew, access is everything. Wet seasons, soft ground, and creek crossings can stop skidders and trucks in their tracks. Our steel logging bridges give you a safe, reliable way to reach every corner of your tract without tearing up the land or losing days to bad conditions.

ME Bridge Solutions builds modular steel bridges that are proven on active timber jobs. Each bridge is engineered for heavy loads and rough approaches. Panels pin together quickly, set in place with standard equipment, and can be moved from job to job as your harvest progresses. You get a durable crossing that performs like a permanent structure but handles like a piece of equipment.

Built for Heavy Forestry Equipment

These logging and forestry bridges are designed for skidders, forwarders, log loaders, and full log trucks. Structural steel I-beams, steel decking, and engineered load ratings give you the capacity you need for modern machines. Standard widths and lengths cover most haul roads and stream crossings, and we can help size the bridge to your site and permitting requirements.

Because the bridges are modular, you can adjust span and width to match each crossing instead of overbuilding or trying to make a homemade bridge work. That means less risk, less downtime, and fewer surprises when the weather turns.

Practical Advantages for Loggers and Landowners

A good logging bridge should pay you back in time saved and headaches avoided. Our bridges help you:

  • Keep crews and loads moving when ground conditions are soft
  • Protect streams, banks, and access roads from rutting and damage
  • Move the same bridge from tract to tract to spread out your cost
  • Meet common best-practice and environmental expectations for water crossings

We offer purchase, rental bridges, and used bridge options, along with affordable delivery and installation support within our service area.

Work With a Team That Knows Logging

Our bridges started with loggers who needed better access on their own jobs. Today, ME Bridge Solutions supplies logging bridges and forestry bridges to crews across the region. We help you choose the right bridge, schedule delivery around your job, and support installation so you can get in, get wood out, and move on to the next tract.

Built Strong. Set Fast. Built for the Woods.

Our Logging Bridges are modular steel crossings made for active timber jobs—heavy loads, rough approaches, and changing sites. Panels pin together quickly, set with standard equipment, and can be moved tract-to-tract as the harvest progresses. Get a durable crossing that performs like a permanent bridge without slowing down your schedule.

  • Solid steel, I-beam construction built for forestry work
  • Four chain points on each panel for efficient loading and relocation
  • Designed for skidders, forwarders, log loaders, and full log trucks
  • Ideal for haul roads, stream crossings, wet-season access, and soft ground approaches
  • Use as a temporary crossing during harvest or a longer-term solution where needed
  • Engineer-stamp certified options available

Bridge Specifications

Standard Lengths

10', 20', 30', 40', 50’, 60’

Panel Width

4-foot wide modular panels

Construction

Solid steel I-beams, reinforced with C-channel sides

Load Capacity

Engineer-certified to handle heavy equipment

Panel Weights

30-foot panels: 4,500 lbs each
40-foot panels: 6,700 lbs each
50-foot panels: 8,500 lbs each
60-foot panels: 11,000 lbs each

Features & Benefits

  • Rapid Installation

    Modular design allows setup in just one day.

  • Easy Handling

    Each panel features two clearly marked chain points for easy loading and moving.

  • Versatility

    Suitable for temporary installations, permanent crossings, or emergency replacements.

  • Optional Add-ons

    Side and pedestrian railings or custom dimensions

Connection Kits

Heavy-duty and standard Connection Kits are critical for maintaining bridge strength and stability. Kits come standard on all 80-ton and DOT-rated bridges, and are recommended for Logging operations.

Map of the United States with red lines indicating routes or paths.

Delivery & Installation

We provide convenient and reasonably-priced delivery directly to your job site. Our team offers full installation services or assistance with offloading and placement to ensure your bridge is operational quickly and efficiently.

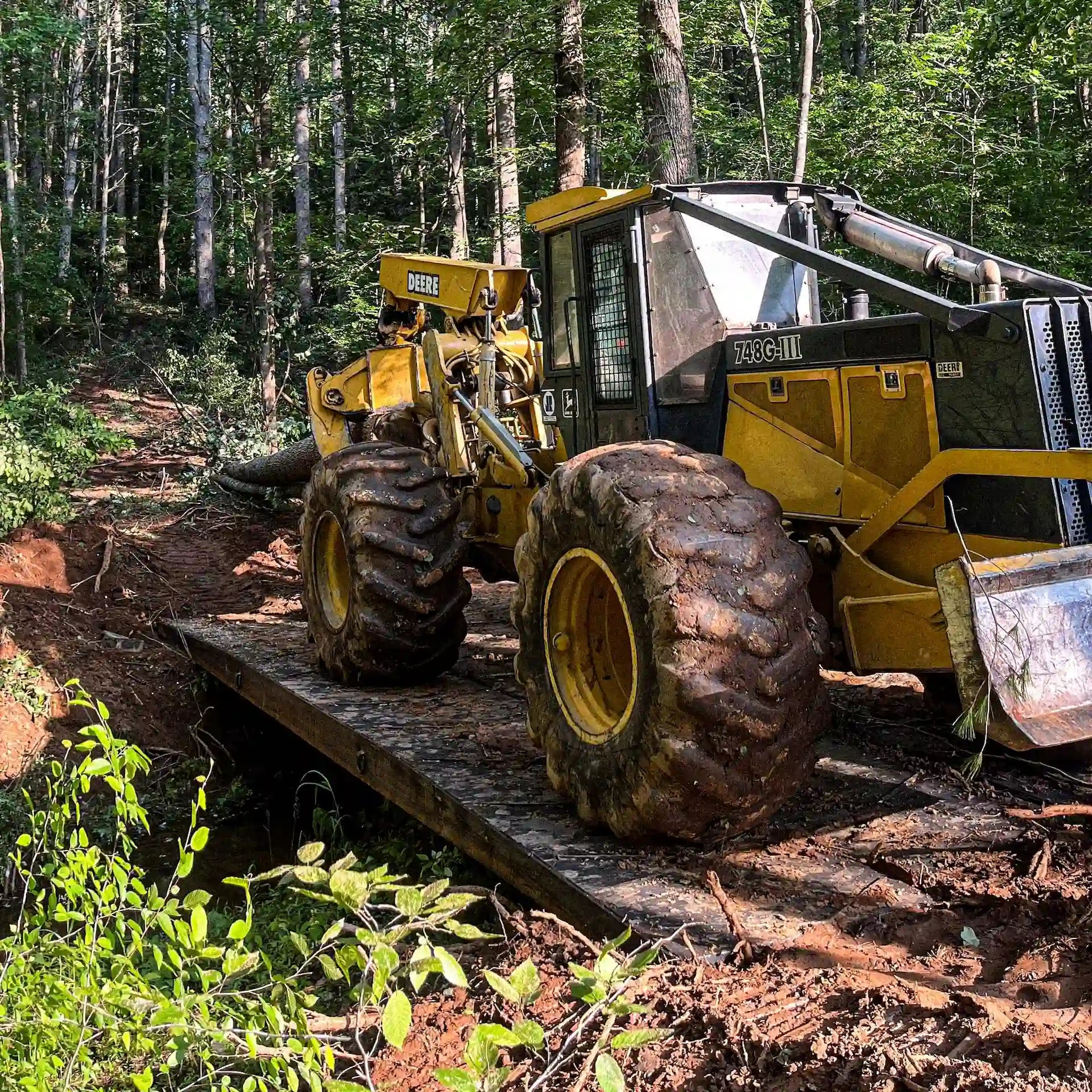

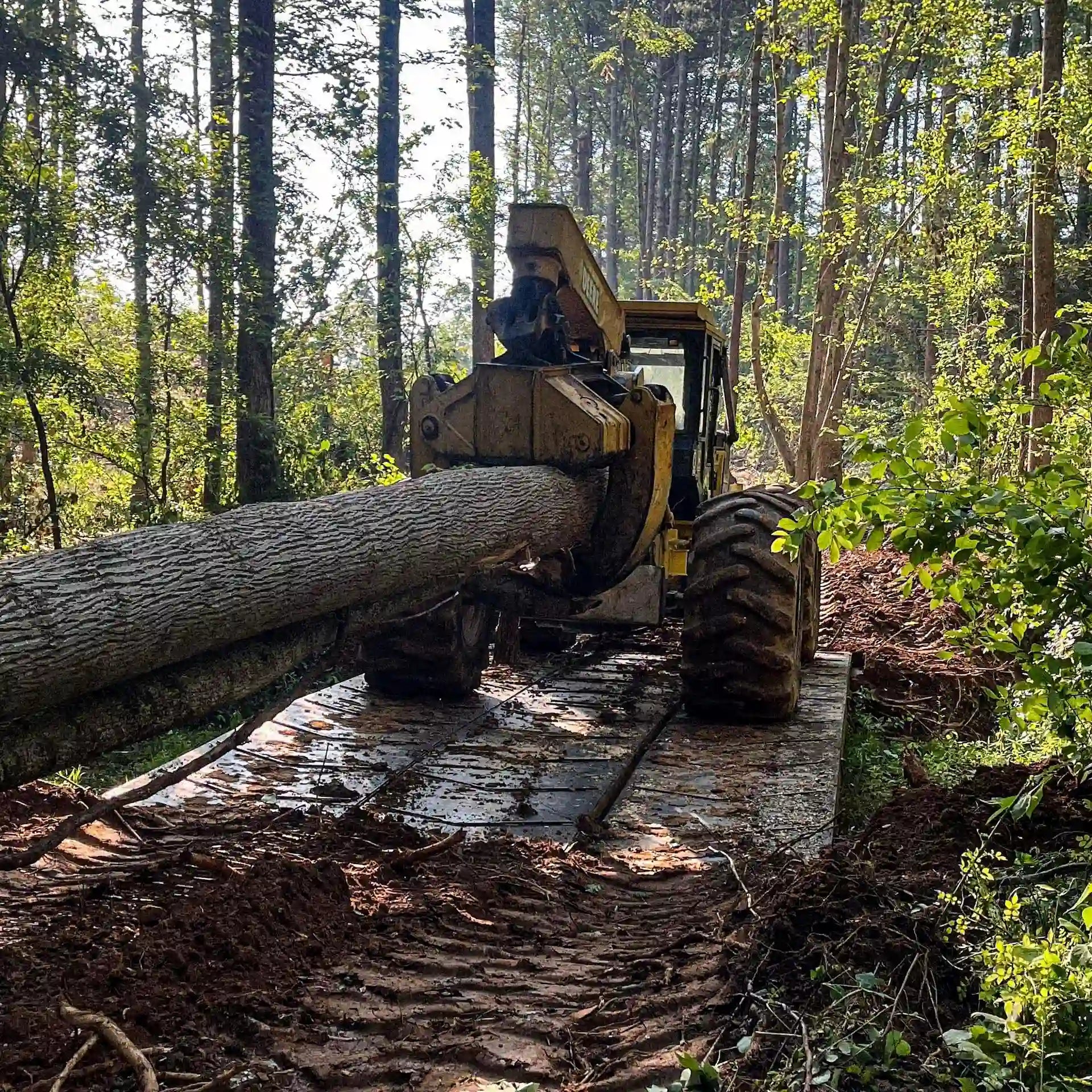

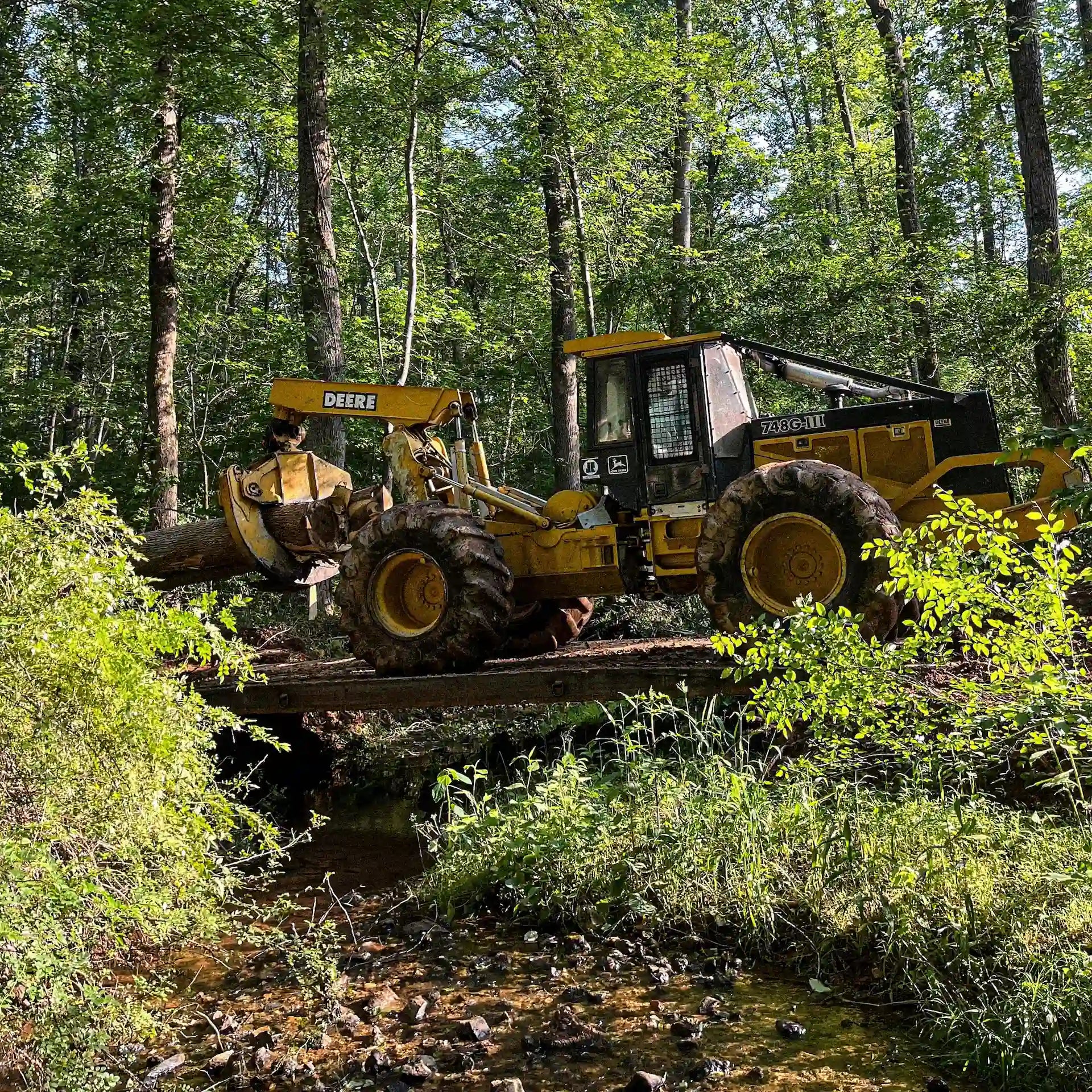

logging equipment on a portable steel bridge in a wooded area

Applications

Our portable steel bridges are widely used across various industries, including:

  • Logging and forestry operations
  • Construction and excavation projects
  • Agricultural access and creek crossings
  • Municipal and county road maintenance
  • Emergency flood and disaster response
  • Utility and pipeline installations
